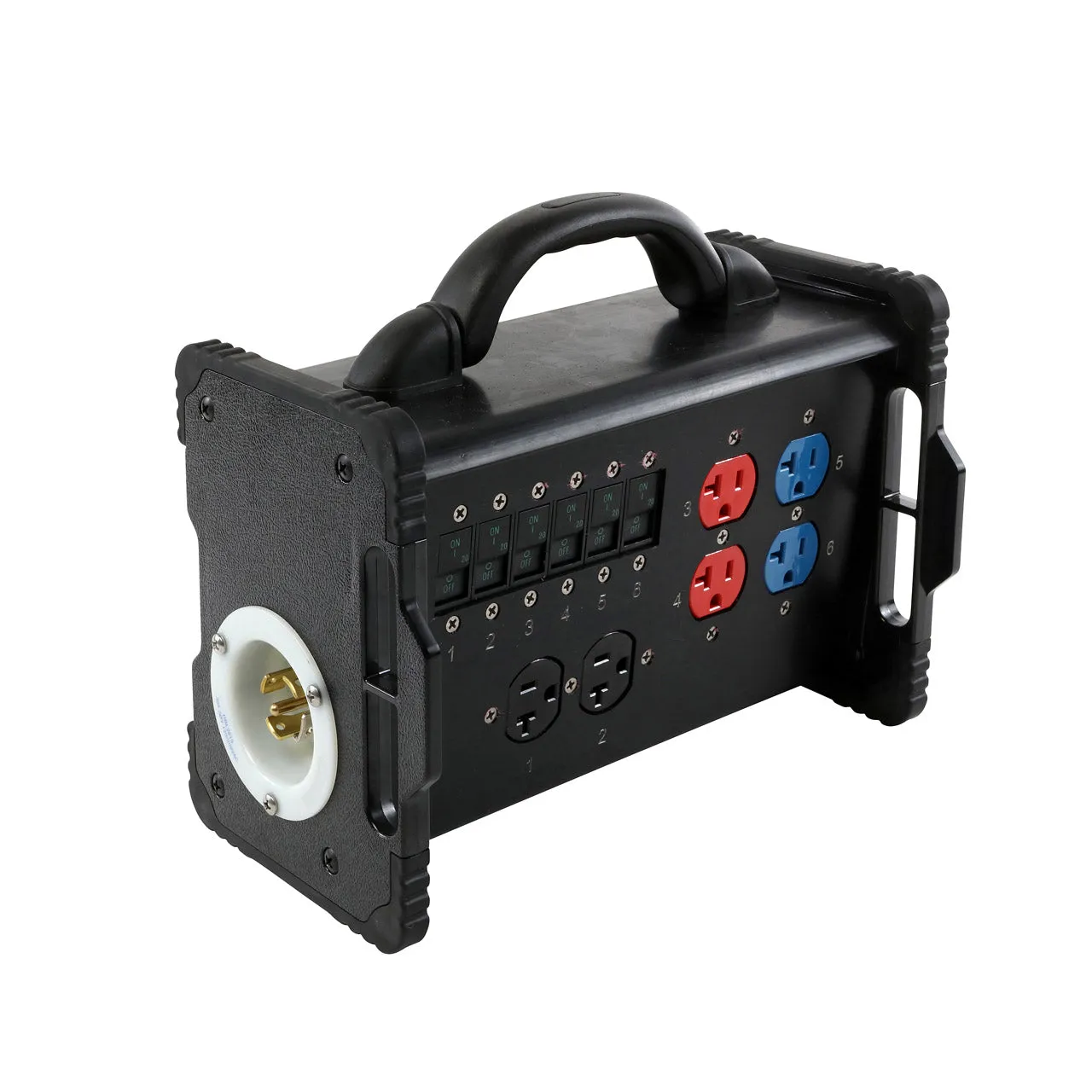

30A 120/208 VAC, (1) NEMA L21-30 Locking Male (Inlet) to (3) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Feed Thru, Bento™
Features and Benefits
- Fed from 30 Amp power, this compact unit provides NEMA 5-20, 20 Amp duplex receptacles for lighting and audio equipment as well as tools for a wide range of applications
- Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
- Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp
- Stackable and compact for easy storage
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
- Collapsible handle and end plate grips for easy handling in tight spaces
Technical Information
- Rating: 30 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (3) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, split-wired for (6) 20 Amp circuits, panel mount
- Overcurrent Protection: (6) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
- Enclosure Type: Bento™
- Dimensions: 11.50"L x 5.90"W x 7.60"H
- Weight: 6.5 lbs.
- Agency Approval: cULus Listed
