- Metal
- L4 METAL ENGINE MODEL KIT THAT WORKS: This fully functional inline four-cylinder engine model features a realistic design and compact size: 16.35 x 5.05 x 10 cm (6.4 x 2 x 4 inches). Designed with a dual cooling system (water-cooled air-cooled), it runs on gasoline with an RPM range of 3200–13500 and delivers an impressive 3.05 horsepower
- LONG STROKE & CRANKSHAFT SUPPORT BRACKET: Built for high-speed stability, the crankshaft uses a dual oil-seal design to effectively prevent oil leakage. An added support bracket reinforces the crankshaft during high-speed operation, ensuring smooth and consistent engine function
- INTEGRATED CRANKSHAFT & VALVE/CAMSHAFT UPGRADE: Features a 90-degree phased crankshaft structure for enhanced smoothness and responsiveness. Upgraded valve design improves durability by 3.5 times, while the high-angle camshaft delivers quicker and more dynamic throttle feedback
- CARBURETOR AND INTAKE SYSTEM ENHANCEMENTS: Redesigned carburetor includes a precision-matched fuel needle for easier ignition and consistent fuel delivery. A new intake manifold simplifies operation, while the dual synchronous pulley system minimizes timing errors at high RPMs by reducing the chance of skipping teeth
- REALISTIC FOUR-STROKE INLINE ENGINE EXPERIENCE: Immerse yourself in mechanical engineering with this gold-finish, sport-styled engine model. Operates on real gasoline, allowing you to build and observe a working engine. A hands-on way to explore the internal mechanics and structure of a real four-stroke engine

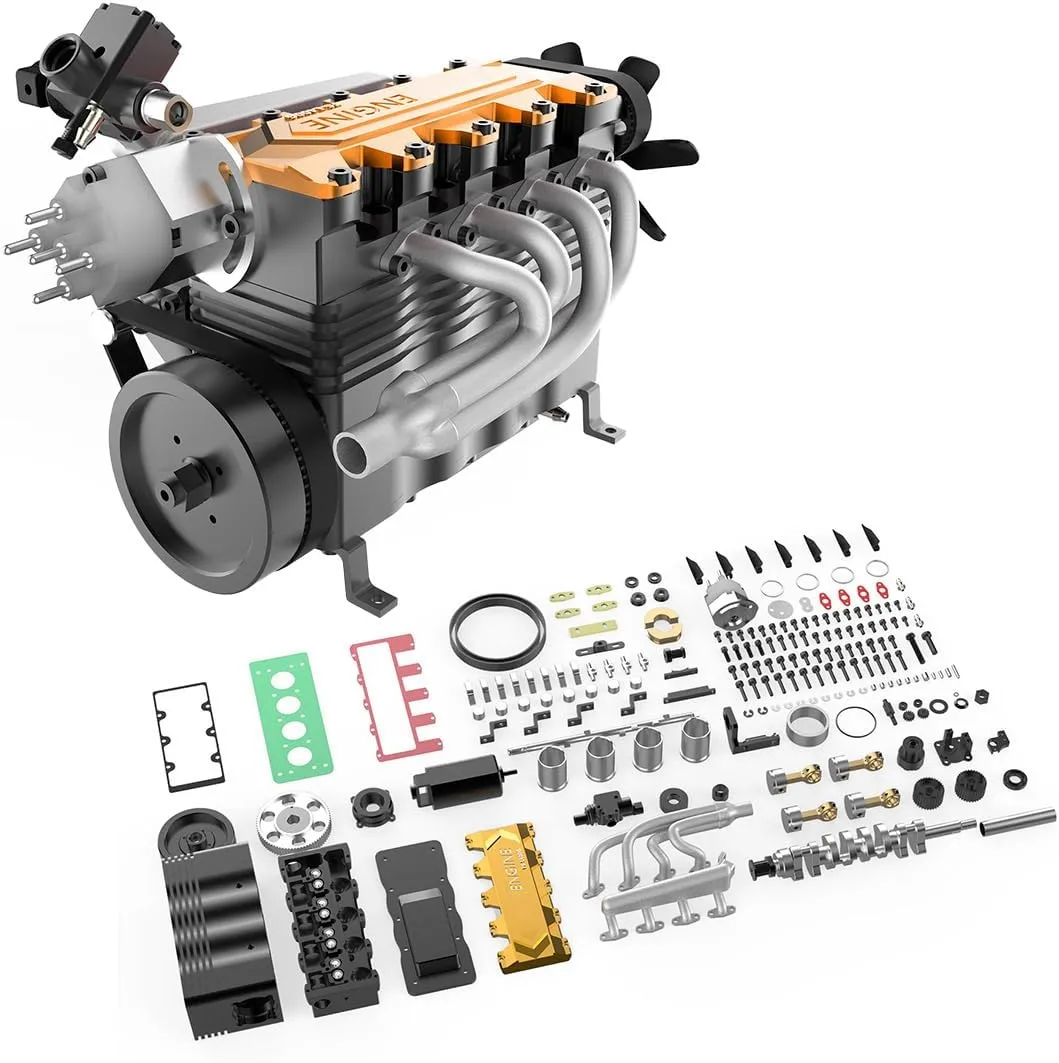

FS-L400BGC 14CC DIY Assembly L4 Four-stroke Inline Four-cylinder Gasoline Engine Model (Kit Version)
Specifications:
.Material: Metal
.Model: FS-L400BGC
.Configuration: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHC (Overhead Camshaft)
.Displacement: 14cc (4 x 3.5cc)
.Cylinders: Inline Four-Cylinder
.Stroke: Four-Stroke
.Bore Diameter: 16.6mm
.Stroke Length: 17.0mm
.RPM Range: 3200-13500rpm
.Power Output: 3.05hp
.Cooling System: Water-Cooled Air-Cooled
.Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
.Start Mechanism: Electric Start
.Ignition Method: CDI Ignition
.Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug
.Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery
.Fuel Type: 92 and Above Gasoline
.Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
.Product Weight: 1250g
.Product Dimensions: 16.35 x 5.05 x 10cm
.Package Dimensions: 21.5 x 21.5 x 17cm
.Package Weight: 1950g
.Packing: Box
Package Including
.Engine Parts Set *1
.Tools Kit *1
.Instructions *1
