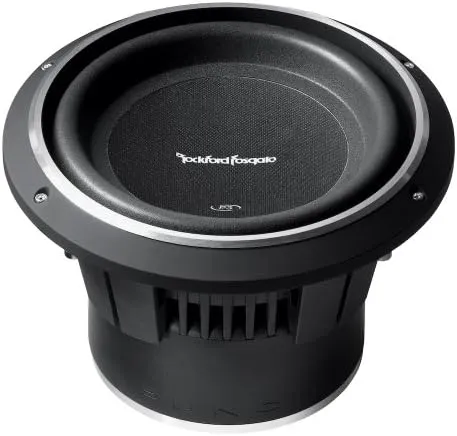

- 10-inch, 2-ohm dual voice coil subwoofer with 800 watts maximum power handling (400 watts RMS)
- Kevlar fiber reinforced semi-pressed paper cone with high-excursion Poly-Ether-Ester surround
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Mount in either direction; reversible cast aluminum trim ring included
- Dual linear spider with embedded 16 AWG tinsel leads
Product Description
Since day one, we have spearheaded the car audio revolution. Nothing has changed. Rockford Fosgate is still the global leader in audio innovation and your passion is our purpose. We engineer the best audio systems for your lifestyle!
Amazon.com
An awesome choice whether you want to add one or multiple subwoofers to your vehicle. The P3 10-inch subwoofers can be used in either sealed or ported enclosures, plus you'll get the wiring flexibility of dual voice coils.
Rockford Fosgate Punch Series Subs
Featuring innovative parabolic cone designs, oversized surrounds and large motor assemblies, Punch subwoofers deliver deep, loud, aggressive bass--not to mention stunning cosmetics that you'll want to show off. For over 20 years, Punch subwoofers have shown the world that big bass, extended power handling and awesome cosmetics need not cost a fortune. One listen and you'll know why it's called The PUNCH.Punch subwoofers deliver deep, loud, aggressive bass. Click to enlarge.
Anodized aluminum voice coil formers provide excellent heat dissipation. Click to enlarge.
P3D210 Features
Speaker Construction
- Custom 10-AWG nickel plated push terminals
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped backplate
- High excursion Poly-Ether-Ester surround
- High-temp voice coil with spun-laced Nomex reinforcement collar
- Kevlar Fiber reinforced semi-pressed paper cone and ABS/Acrylic dustcap
- Protective PVC textured magnet cover
- Reversible diamond cut cast aluminum trim ring
- Vented spider cavity
Aluminum V/C Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.
Venturi-Effect Cooling
The "Venturi-Effect" is created by gradually reducing the air-flow exhaust path area, which increases the air speed across the key thermal masses ofthe speaker motor parts maximizing cooling effectiveness.
P3D210 Specifications
Size: 10" Impedance: 2-Ohm x 2 Power Handling: 400 Watts RMS
800 Watts Max Voice Coil Diameter: 2.5" 4-Layer (6.35 cm) Motor Size: 78 oz. Double Stacked Speaker Connector: Dual 10 AWG compression SPL(1w/1m): 83 dB Woofer Displacement: 0.074 cu. ft. (2.10 Liters) Cutout Diameter: 9.0 in. (22.86 cm) Mounting Depth: 6.25 in. (15.56 cm)Thirty Years of Rockford Fosgate
Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.
What's in the Box
Rockford Fosgate Punch P3 P3D210 10-Inch 400-Watt Subwoofer - 2 Ohm, Trim Ring, Installation Hardware, User's ManualAdditional 10-Inch Sub Options From Rockford Fosgate
If you need more speaker, step up to the Power Series T1D210.On a tighter budget? Consider the Prime Series R1S410.
Rockford Fosgate Punch Series P3 Subwoofers
Rockford Fosgate Punch P3 P3D410 10-Inch 400-Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P3 P3D412 12-Inch 500-Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P3 P3D415 15-Inch 1000 Watt Subwoofer - 4 Ohm Rockford Fosgate Punch P3 P3D210 10-Inch 400-Watt Subwoofer - 2 Ohm Rockford Fosgate Punch P3 P3D212 12-Inch 500-Watt Subwoofer - 2 Ohm Rockford Fosgate Punch P3 P3D215 15-Inch 1000 Watt Subwoofer - 2 Ohm
- Is Discontinued By Manufacturer : Yes
- Product Dimensions : 12.4 x 18 x 12.4 inches; 39.68 Pounds
- Date First Available : November 1, 2008
- Manufacturer : Rockford Fosgate
