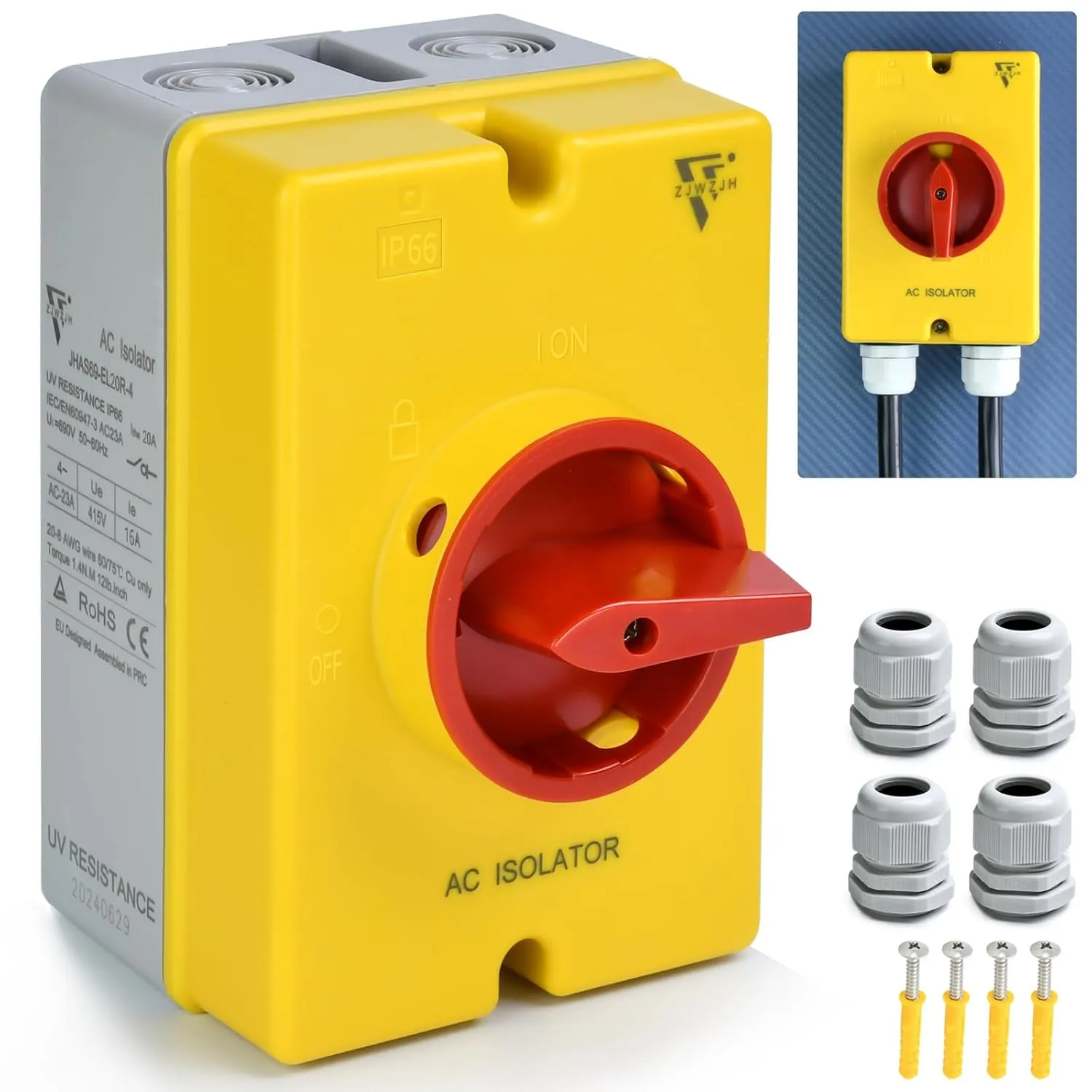

- 【20A 4-Poles】Solar Disconnect Switch rated insulation voltage Ui: 20 Amp AC690V,4-Poles. Our Disconnectors Switch through RoHS TUV and CE certification. Flame retardant PC material shape has good insulation and high temperature resistance.
- 【WIDE APPLICATION】 Isolation switch is widely used in machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection, safety disconnection, machine control, motor control.
- 【Protection Grade】 IP66 waterproof disconnect switch box for indoor/outdoor use offering a level of protection from corrosion, windblown dust and rain, splashing water and hose directed water.
- 【Powerful Function】This switch has a load breaking up to 10 times the rated current, making it ideal for motor isolation. The rotating handle can be used for hanging locks.
- 【Package and Service】 Package Include: 1 x Switch Disconnectors; 6x Screw; 4x cabie connectors.
【Package and Service】 Package Include: 1 x Disconnector Switch; 2x cable connectors, 1x0.5m corrugated pipe. 】
Switch-disconnectors are widely used in Power Distribution systems and Automation systems for Buildings, Power, Petrochemical and other industries, can effectively solve the problems of emergency disconnection, safety disconnection, machine control and motor control.
With integrated isolation, breaking and switching function, the high performance design means these products can be easily changed form Load Isolation Switches to Cam Switches and provide highly innovative solutions for many application.
With the instantaneous on/off structure contact force is not a affected by external forces, the contact pressure and the over travel remain stable during the operation of the handle to the action point.
The switch housing is made of glass fibre reinforced unsaturated polyester resin and has high Flame Rsistance, Dielectric, Anti-Carbonisation and Impact Resistance.
A standard 3 pole Switch-disconnectors can be combined into a 4 pole. Switch-disconnectors by the used of accessories.
- Product Dimensions : 5.71 x 3.86 x 4.41 inches; 12.16 ounces
- Date First Available : April 11, 2025
- Manufacturer : ZJWZJH
- Country of Origin : China
