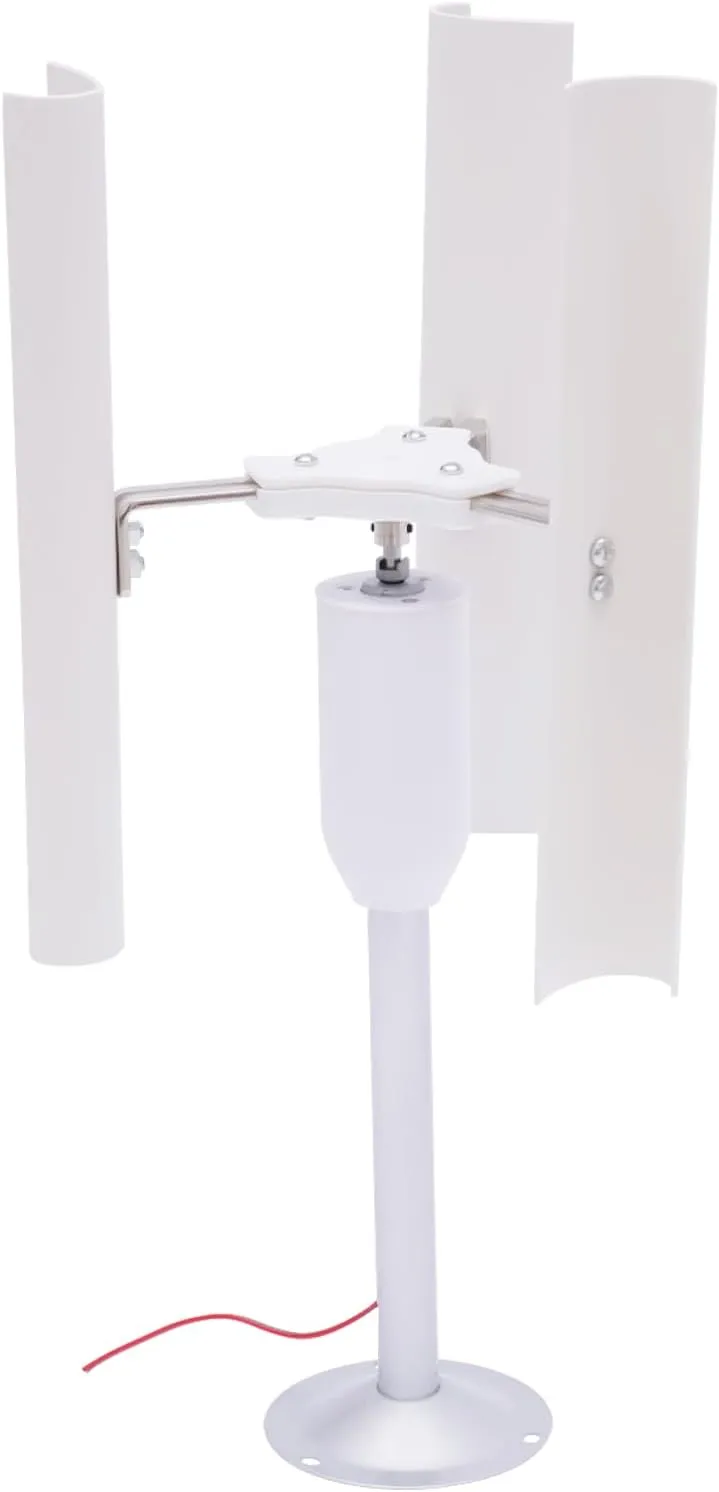

- [Efficient Low Wind Speed Power Generation]This vertical axis wind turbine starts at just 9.84ft/s, capturing energy even in gentle breezes with its 3 streamlined PVC blades, perfect for low-wind areas or indoor experiments using a fan.
- [Durable and Weatherproof Outdoor Design]Built with anti-corrosion PVC, aluminum alloy, and UV-resistant PP, this turbine withstands harsh weather and lasts years without rust, deformation, or water damage.
- [Ultra-Quiet 36dB Operation]With noise lower than a refrigerator, this turbine provides silent green energy for homes, classrooms, or remote cabins without disturbing your peace.
- [Complete Teaching Tool]Ideal for science projects, this kit includes diodes and a brushless motor to teach kids renewable energy concepts while boosting hands-on skills.
- [Easy Screw-Mount Installation]Sturdy base with pre-drilled holes ensures quick setup on rooftops, poles, or desks, requiring no complex tools—just tighten and start generating power.
Application
The vertical axis wind turbinecan be installed at a height of more than 9.84ft to generate electricity, and can also be used to generate electricity with a hairdryer or fan, suitable for scientific experiments, teaching uses, and so on.
How to Install
1. Tighten and secure the base and spindle rod.
2. Fit the blade holder into the flange using the longer three screws and nuts. (Outer end of blade holder toward flange)
3. Install the blades according to the markings on the blades.
Specifications
Color: White
Material: PVC, PP, Aluminum Alloy
Mount Type: Screw Mounted
Assembly Required: Yes
Process: Injection Molding
Noise: 36dB
Number of Blades: 3
Suitable Installation Height:>3m/9.84ft
Start Wind Speed: 3m/9.84ft/s
Rated Wind Speed: 12m/39.37ft/s
Safety Wind Speed: 18m/59.06ft/s
Maximum Wind Speed: 20m/65.62ft/s
Rotating Speed: 150-1000rpm
Output Power Range: 0.1-20W
Output Current Range: 0.1-3A
Motor Type: Three Phase Permanent Magnet Pure Copper Brushless Motor
Working Voltage: 1-12V
Rated Power: 20W
Product Size(D*H): 22*42cm/8.66*16.54in
Base Diameter: 9cm/3.54in
Fan Blade Length: 25cm/9.84in
Package Included
1* Vertical Axis Wind Turbine
1* Allen Key
1* Capacitance
7* Diodes
Other Needed Accessories
Notes
1.Please check the size carefully before ordering.
2.Please check the cable, power supply, etc. carefully before use, and take good protective measures to avoid potential safety hazards.
3.Please note that it is just for testing and teaching use, not actual use. To improve the display effect, the turbine needs to be powered by a fan or blow dryer (not included) on it at just the right angle instead of the natural wind.
4.Please pay attention to the direction of the rectifier diode. The positive pole has a white edge, and all diodes need to be in the same direction.
5.Please note that the product power generation is three-phase alternating current (AC), you need to provide your soldering iron (not included) to weld the rectifier diodes to convert them to DC power generation.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
