- Immersive DIY Engine Kit: Build your own L4 engine from precision metal parts. A hands-on project offering a thrilling mechanical experience for hobbyists and engineering enthusiasts
- Compact Powerhouse Design: Despite its small size, the L4-205 OHV engine delivers high torque with a long-stroke design, OHV valve system, and upgraded 20.5cc displacement for superior output
- Reliable Cooling & Lubrication: Features independent lubrication with external oil pump and wet water-cooling system to ensure smooth operation, reduced heat, and extended engine lifespan
- Responsive Throttle & Rich Exhaust Sound: Stainless steel intake/exhaust and tuned carburetor deliver smooth throttle response and a deep, powerful sound for a truly immersive driving experience
- High-End Craftsmanship for RC Use: CNC-machined with a 3-ring piston, hardened liner, and reinforced crankshaft. Lightweight and perfect for 1/8 to 1/14 RC crawlers, trucks, and custom builds

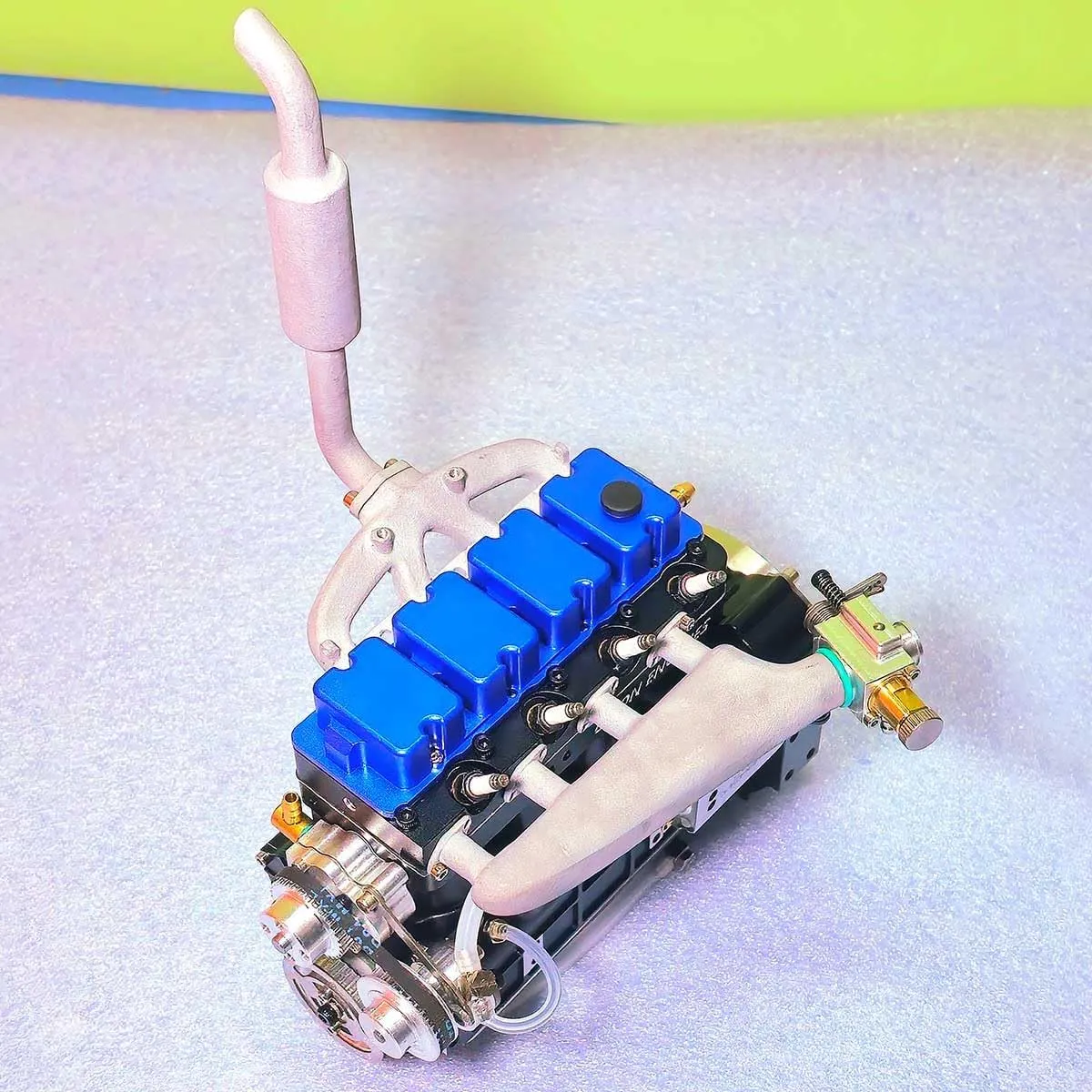

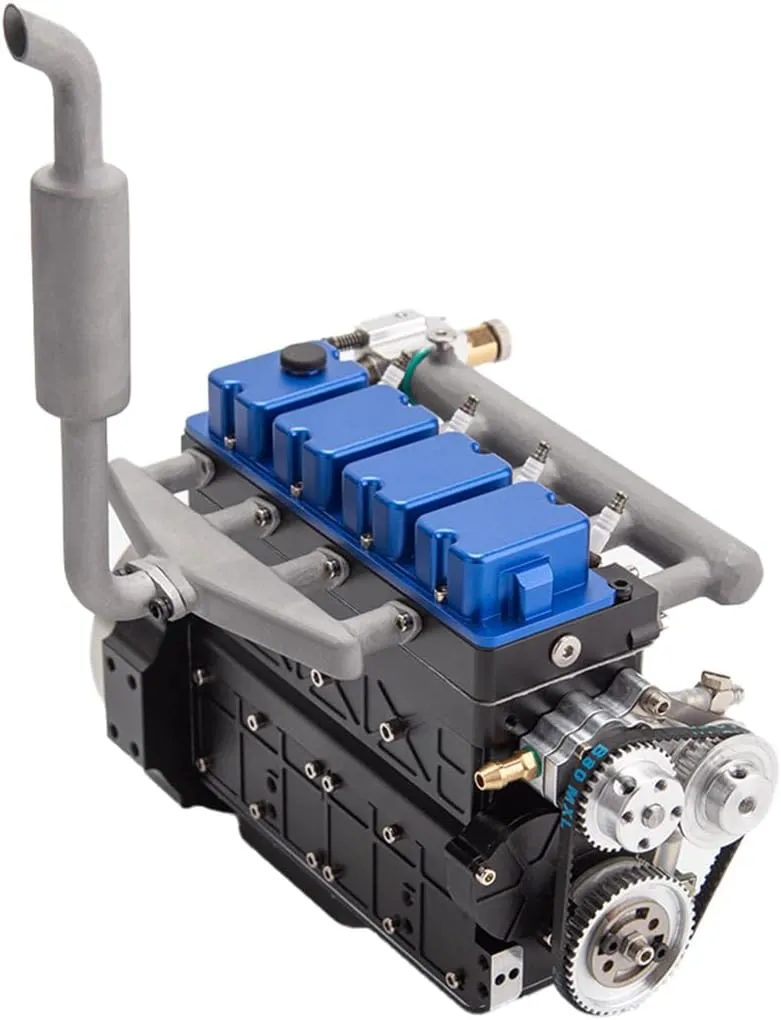

L4-205-OHV 20.5cc Inline 4-Cylinder 4-Stroke Water-Cooled Gasoline Engine Model for RC Cars
Specifications:
.Material: Metal
.Color: Blue Black
.Model: L4-205-OHV
.Product Form: Fully Assembled
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHV (Overhead Valve)
.Bore Diameter: 18.5 mm
.Stroke: 19 mm
.Displacement: 20.5cc
.Cylinders: Inline Four-Cylinder
.Cycle: Four-Stroke
.Speed Range: 1800-11500 rpm
.Power Output: Approx. 3.6ps
.Cooling Method: Water-Cooled
.Starting Method: Electric Start
.Ignition System: Dedicated CDI Ignition
.Spark Plug Type: 3/16-40 Thread Type (Imperial Thread)
.Lubrication Method: Independent Lubrication System
.Fuel Type: 92 or Higher Gasoline
.Oil Type: 2T/4T Oil, Recommended 10W50 Oil
.Starter Power Supply: 6-14V, Recommended 12V Lithium Battery
.Product Weight: 1300g
.Package Weight: 2000g
.Product Dimensions: 13.5 x 10.2 x 10.5cm
.Package Dimensions: 20 x 20 x 20cm
.Packing: Wooden Box
Package Including
.L4 Engine Model *1
.Exhaust Pipe *1
.Instruction Manual *1
